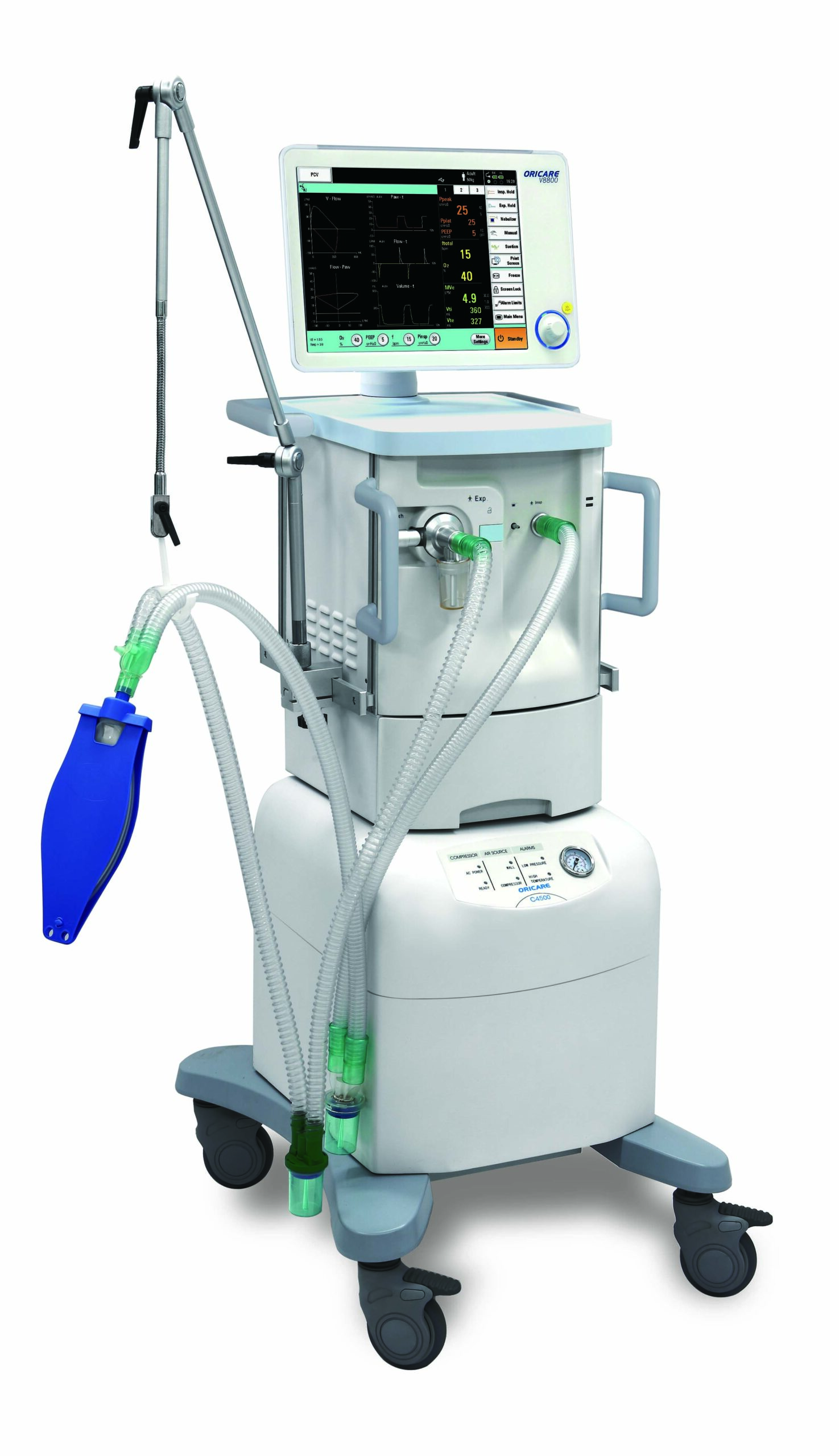

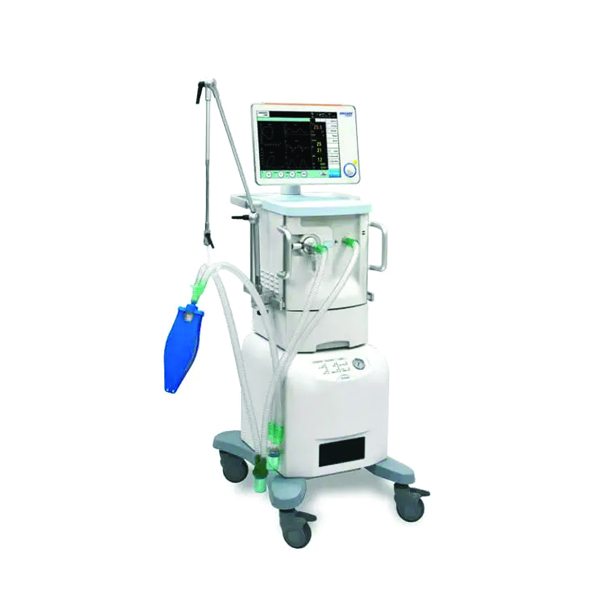

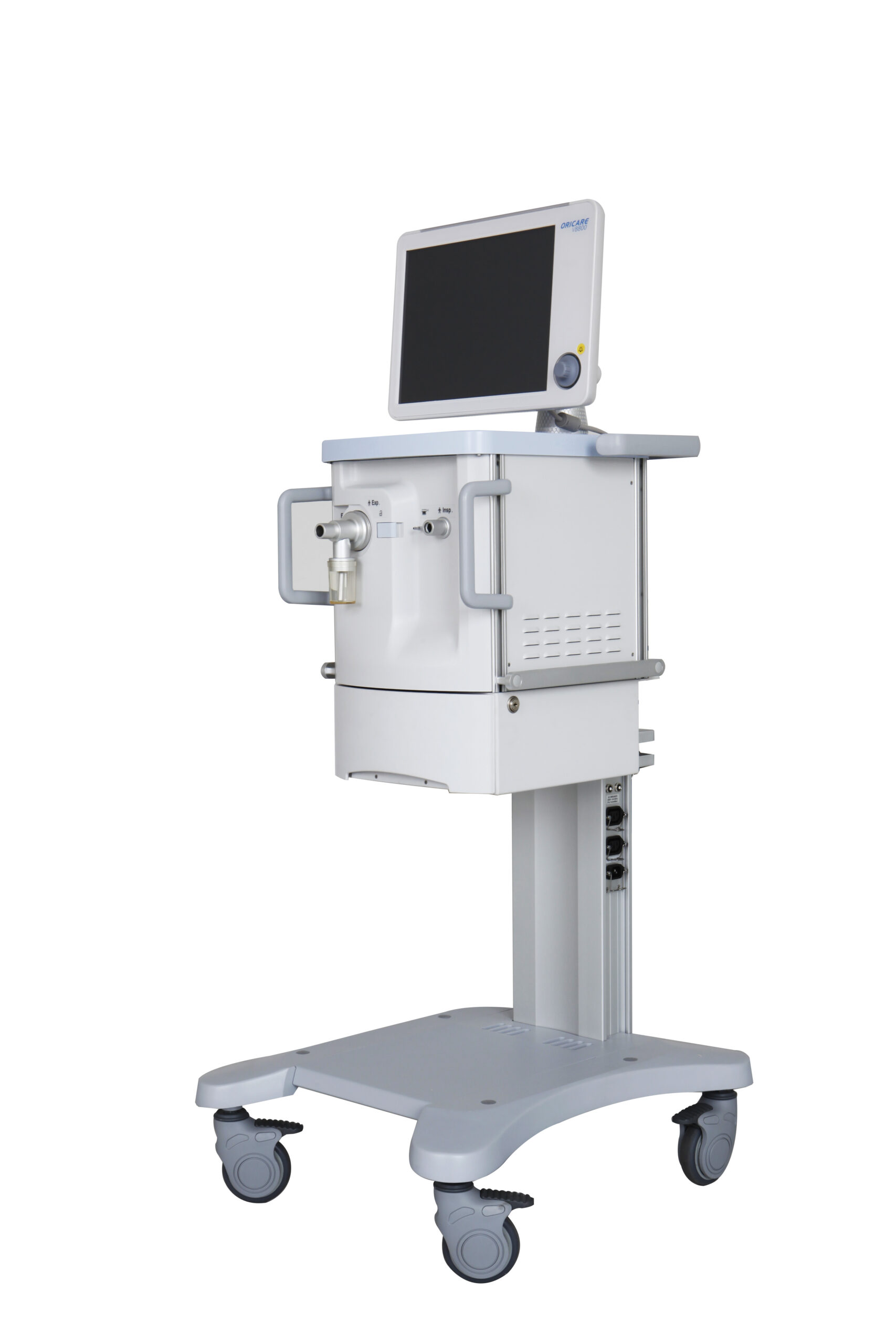

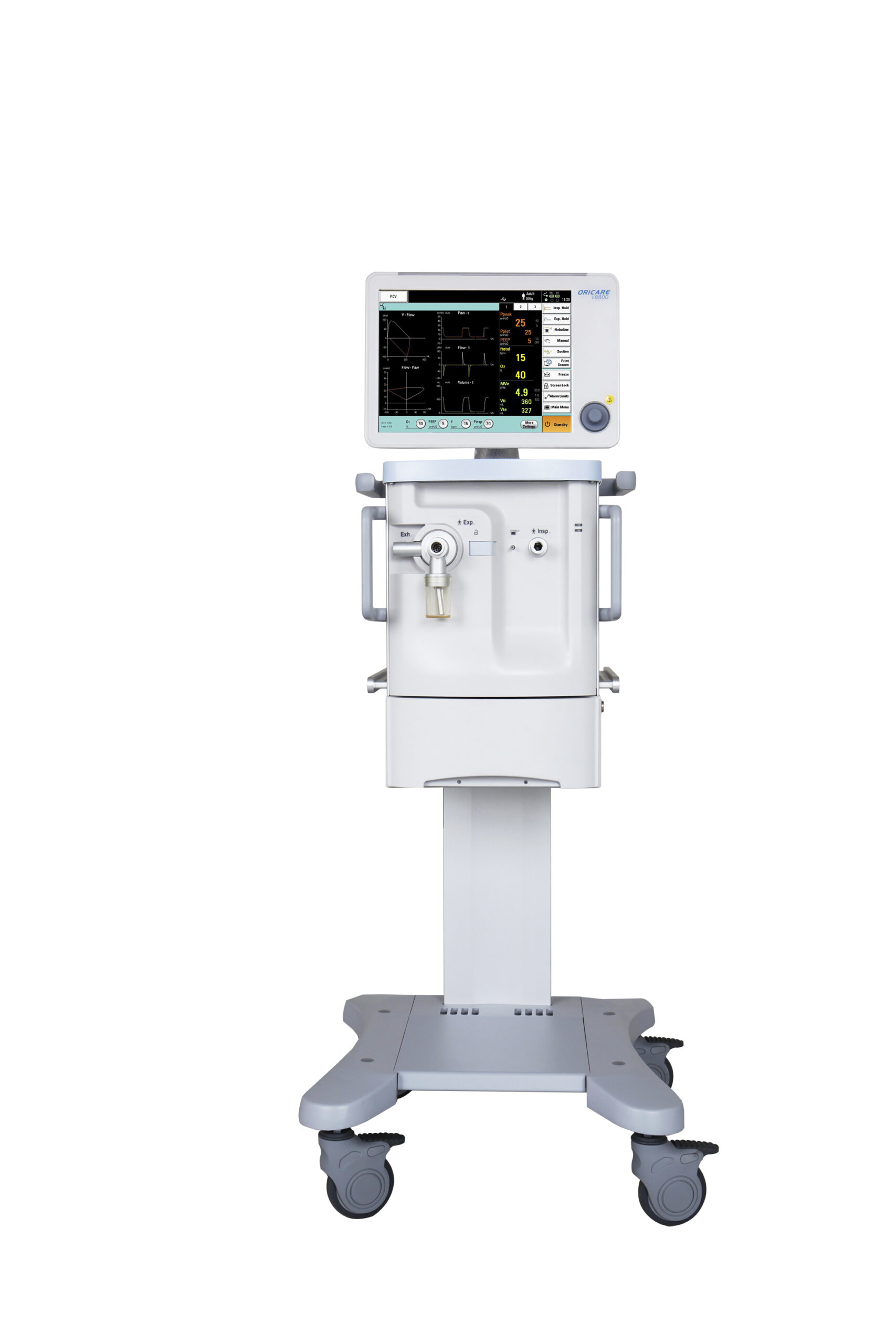

Model: V8800

Ventilation Modes:

• Volume Controlled (VCV), Assist /Control
  Pressure Controlled (PCV), Assist/Control
  Pressure Regulated Volume Controlled (PRVC), Assist/Control
  Synchronized Intermittent Mandatory Ventilation,
  SIMV(VCV) + PSV, SIMV(PCV) + PSV, SIMV(PRVC) + PSV
  Spontaneous Ventilation (SPONT/CPAP) + PSV
  Bi Level Ventilation (BIVENT/APRV) + PSV
  Non-invasive Ventilation (NIV/CPAP + PSV, NIV/PCV)

Parameters:

• Tidal Volume: 20~2500 ml
• Respiratory Rate: 1~120 bpm
• Inspiration Time: 0.1~12 s
• Inspiratory Pause Time: 0~4 s
• Tslope: 0~2 s
• FiO2: 21%~100%
• PEEP: 0~50 cmH2O
• CPAP (NIV): 2~20 cmH2O
• Psupport: 0~90 cmH2O
• Pinsp: 0~100 cmH2O
• Phigh: 5~90 cmH2O
• Plow: 0~50 cmH2O
• Esens: 5%~80%
• Flow Patterns: square, decelerating
• Inspiratory Hold
• Expiratory Hold
• Nebulizer: 30 or 45 minutes
• Auto Tube Compensation (ATC)
• Compliance Compensation
• Graphical Trends

Monitoring:

• Pressure values: Ppeak, Pmin, Pplat, Pmean, PEEP
• Volume/Flow values: Vti, Vte, MV, MVspont, Leak%
• Waveforms: Pressure – Time, Flow – Time, Volume – Time
• Loops: Flow – Pressure, Pressure – Volume, Volume – Flow
• FiO2
• Optional EtCO2

Alarms:

• MV high, MV low, Circuit disconnect, Paw high, Paw low, Continuous airway pressure high, Vti high, fspont high, Tapnea, FiO2 high, FiO2 low, EtCO2 high, EtCO2 low, Power supply failure, Battery low, Battery exhausted, Air supply failure, O2 supply failure, PEEP low, etc.

Operating Conditions:

• Gas Supply: O2, Air, 200~650 kPa (29~94 psi)
• Power Supply: 100~240 V, 50/60 Hz
• Operating Temperature: 10~40°C
• Relative Humidity: 15%~95%, non-condensing
• Atmospheric Pressure: 500~1060 hPa
• Communication Interfaces: RS-232, VGA, USB, RJ45
• Dimensions (H × W × D): 624 x 774 x 1410 mm (with Cart)
