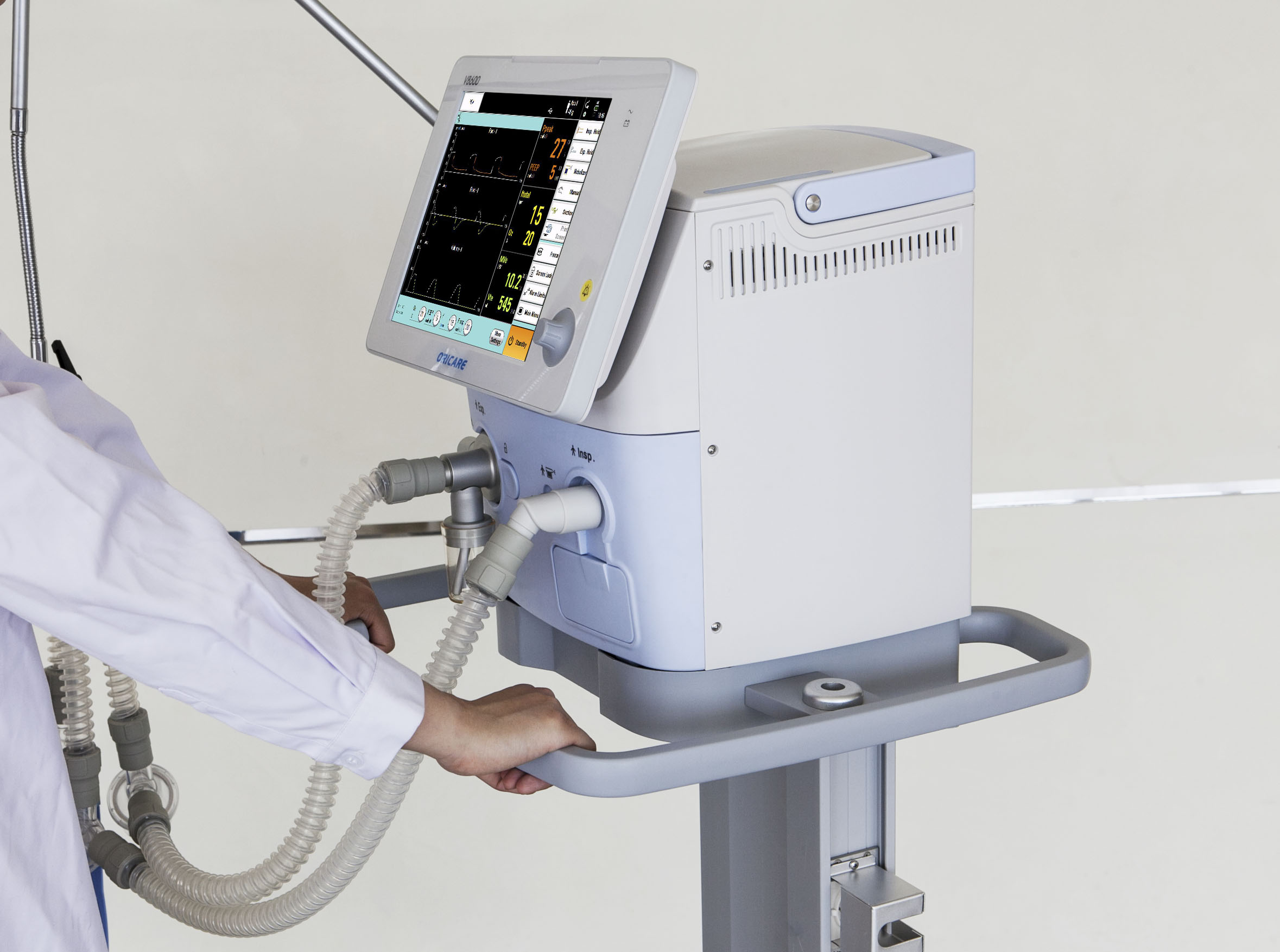

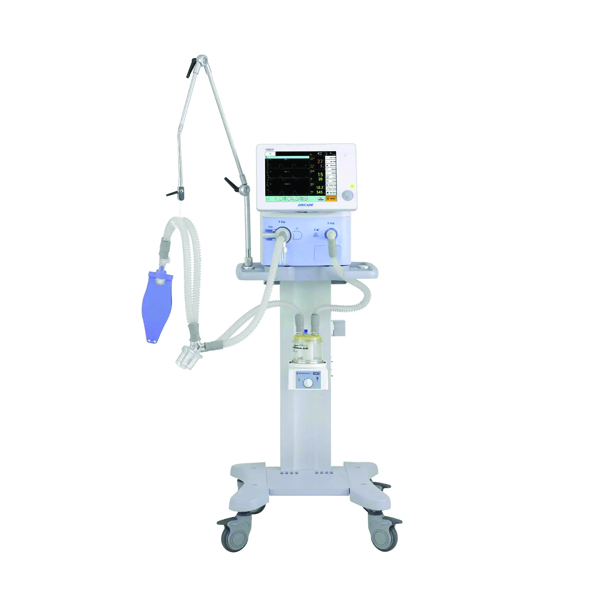

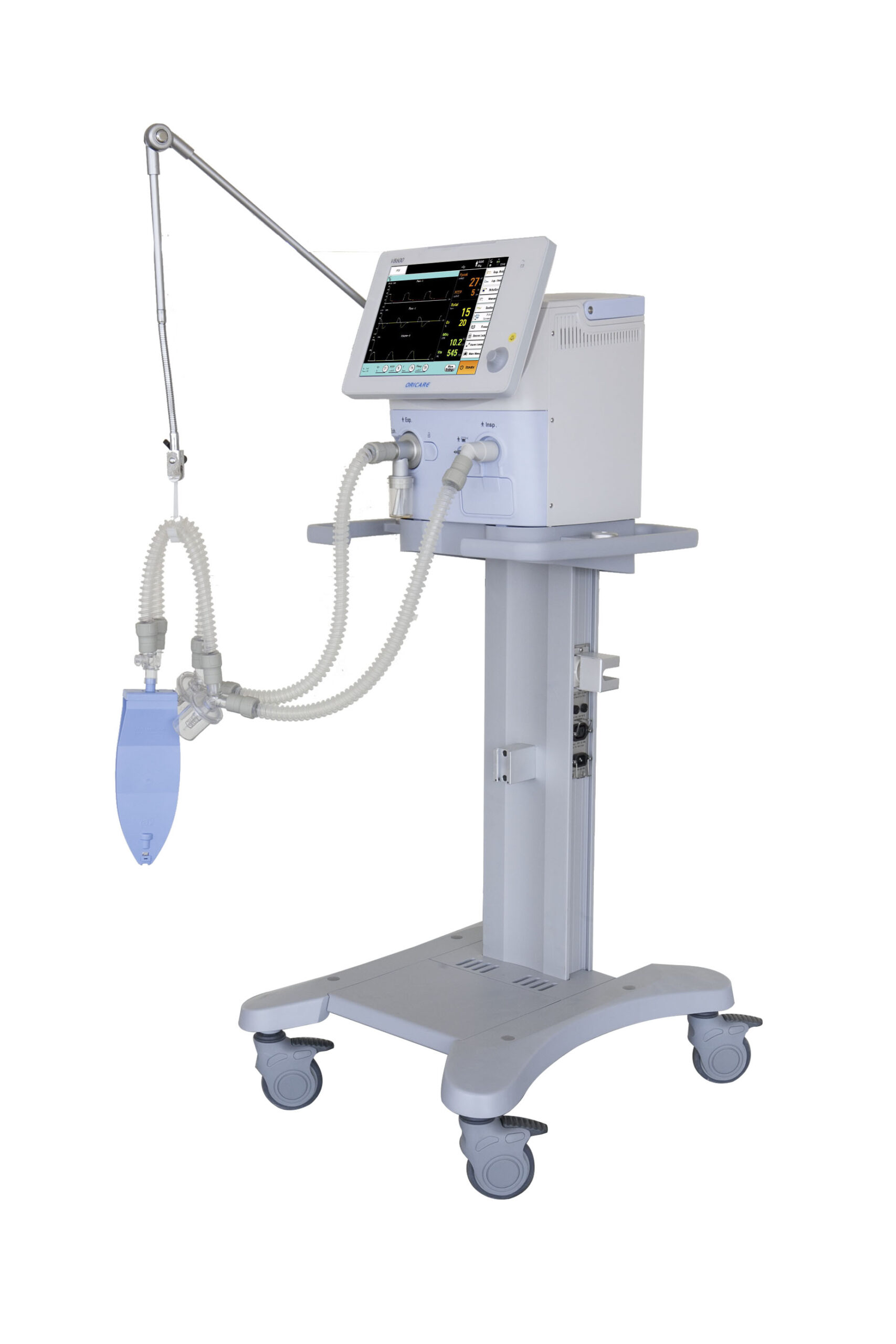

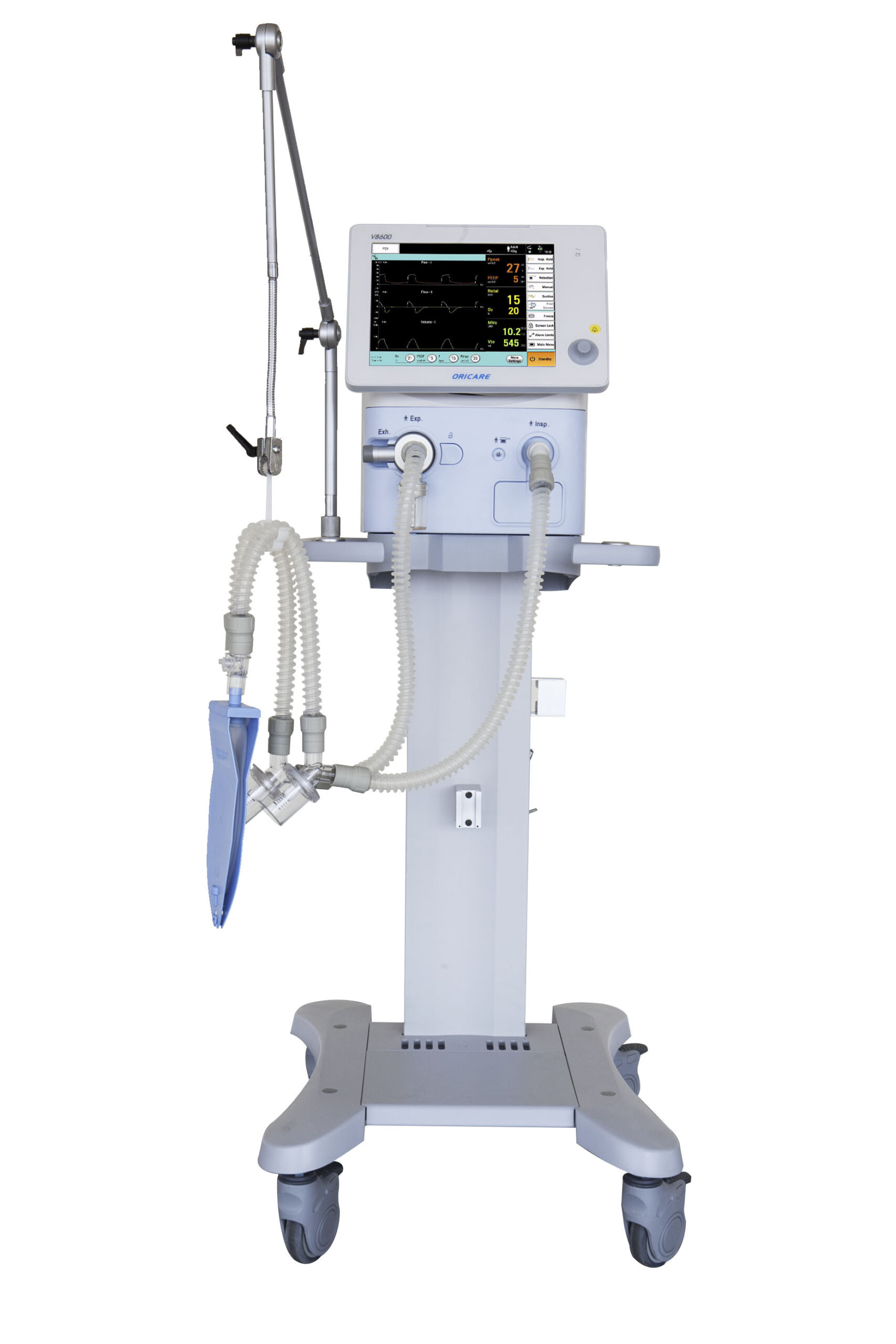

Model: V8600

Technical Specifications

Ventilation Modes:

• Volume Controlled (VCV), Assist/Control
• Pressure Controlled (PCV), Assist/Control
• Pressure Regulated Volume Controlled (PRVC), Assist/Control
• Synchronized Intermittent Mandatory Ventilation,
• SIMV(VCV) + PSV, SIMV(PCV) + PSV, SIMV(PRVC) + PSV
• Spontaneous Ventilation (SPONT/CPAP) + PSV
• Bi Level Ventilation (BIVENT/APRV) + PSV
• Non-invasive Ventilation (NIV/CPAP, NIV-T, NIV-S/T)

Monitoring:

• Pressure values: Pmin, Pplat, Pmean, Ppeak, PEEP
• Volume/Flow values: Vti, Vte, MV, MVspont, Leak%
• Waveforms: Pressure – Time, Flow – Time, Volume – Time
• Loops: Flow – Pressure, Pressure – Volume, Volume – Flow
• FiO2
• Optional EtCO2

Parameters:

• Tidal volume: 20~2000 ml
• Respiratory rate: 1~80 bpm
• Inspiration time: 0.2~9 s
• Inspiratory pause time: 0~4 s
• Tslope: 0~2 s
• FiO2: 21%~100%
• PEEP: 0~35 cmH2O
• CPAP (NIV): 2~20 cmH2O
• Psupport: 0~70 cmH2O
• Pinsp: 5~70 cmH2O
• Phigh: 5~60 cmH2O
• Plow: 0~35 cmH2O
• Esens: 5%~80%
• Flow Patterns: square, decelerating
• Inspiratory Hold
• Expiratory Hold
• Nebulizer: 30 minutes
• Auto Tube Compensation (ATC)
• Compliance Compensation
• Graphical Trends

Alarms:

• MV high, MV low, Circuit disconnect, Paw high, Paw low, Continuous airway pressure high Vti high, fspont high, Tapnea, FiO2 high, FiO2 low, EtCO2 high, EtCO2 low, Power supply failure, Battery low, Battery exhausted, Air supply failure, O2 supply failure, PEEP low, etc.

Operating Conditions:

• Gas Supply: O2, 280~600 kPa (41~87 psi)
• Power Supply: 100~240 V, 50/60 Hz
• Operating Temperature: 5~40°C
• Relative Humidity: 5%~95%, non-condensing
• Atmospheric Pressure: 700~1060 hPa
• Communication Interfaces: RS-232, VGA, USB, RJ45
• Dimensions(H × W × D): 322 x 375 x 366 mm (Main Unit)
• 547 x 675 x 950 mm (Cart)
