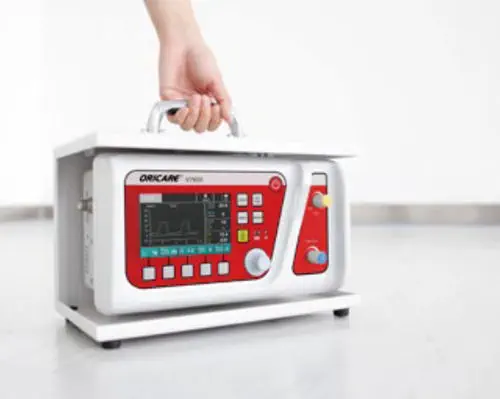

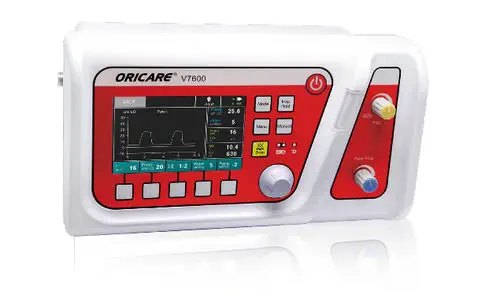

Model: V7600

Combines advanced technology and versatile ventilation function Meets the breathing requirements of adults, pediatrie and infant patients Pneumatically driven electronically controlled

It helps optimize the quality of care and patient comfort, thus improving patient outcomes. One device addresses diverse ventilation requirements: fully covering various situations, as well as meets the breathing requirements for infant to adult patients.

Ventilation Modes

• A/C-V with sigh A/C-P SIMV-V SIMV-P SPONT/PSV CPAP MANUAL

Parameters

• Tidal Volume: 0~2000 ml
• Respiration Rate: 1~120 bpm (A/C mode) 1~40 bpm (SIMV mode)
• I:E Ratio: 4:1~1:10
• FiO2: 40%~100%
• Trigger Sensitivity: Pressure Trigger: -20~0 cmH2O, Flow Trigger: 2~30 L/min
• PEEP: 0~30 cmH2O

Monitoring

• Pressure Value: Ppeak, PEEP
• Volume/Flow Value: Vt, MV
• Time Value: ftotal
• Real Time Curves: Pressure-Time, Flow-Time

Alarms

• Paw high Paw low MV high Gas supply down No VT FiO2 high FiO2 low Apnea Continous pressure high / CP high EX. power lost O2 deficiency Battery low

Technical Data

• Supply Gas: O2, 0.25 MPa~0.6 MPa
• Power Supply: AC100 V~240 V, 50 Hz/60 Hz, ≤65 VA DC12 V
• Screen Size: 5〞LCD Screen
• Maximum Security Pressure: ≤8 KPa
• Compliance: ≤4 ml/100 Pa
• Dimension (WxDxH): 168 mm x 156 mm x 300 mm
• Battery Operating Time: Approx. 4.5 hours
• Weight: 3.2 kg (Main unit) 8 kg (Main unit & Accessories)
