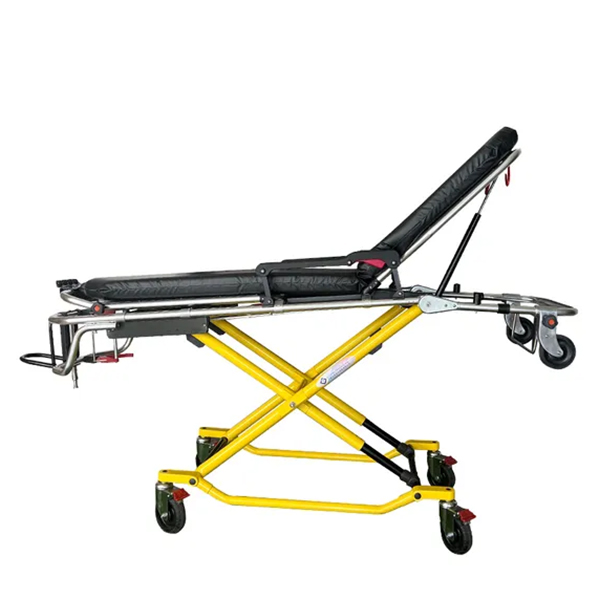

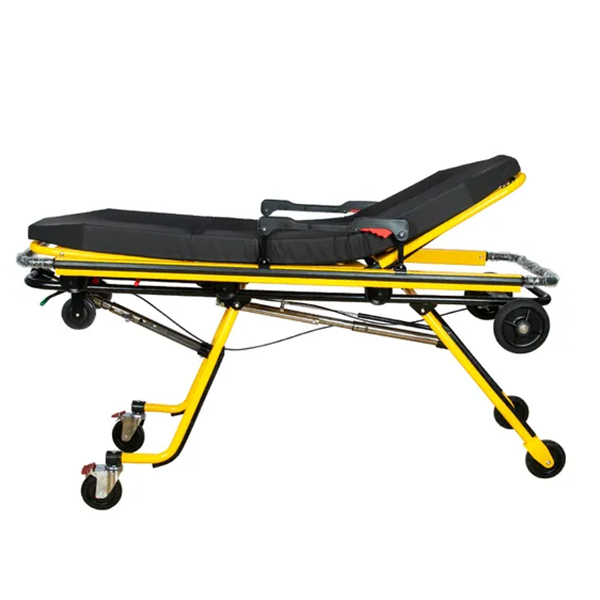

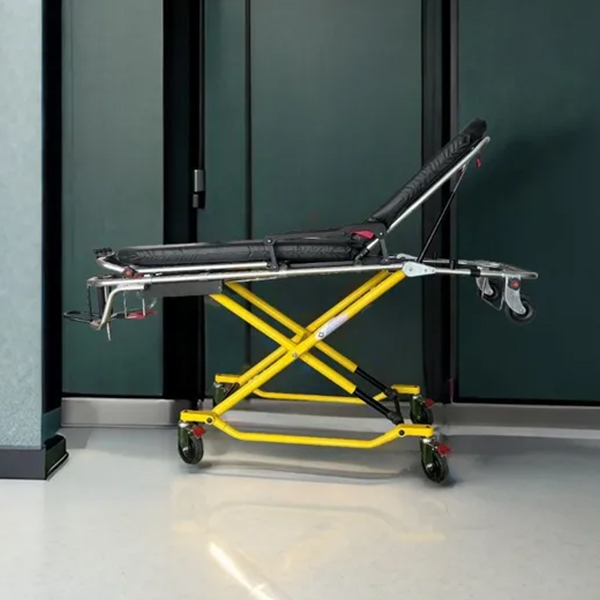

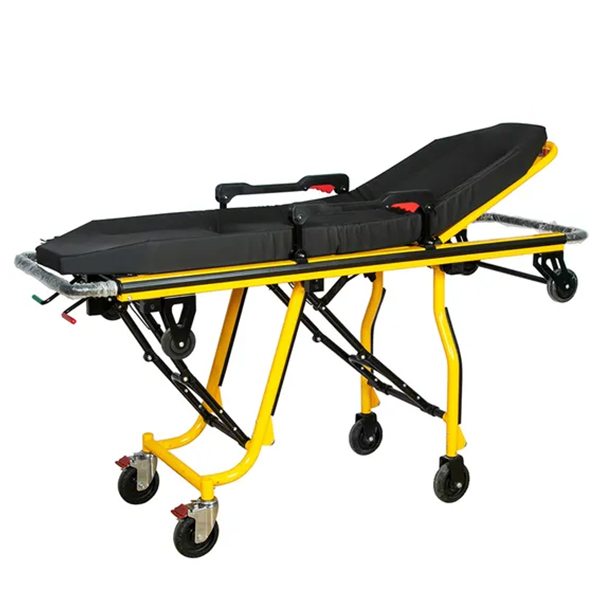

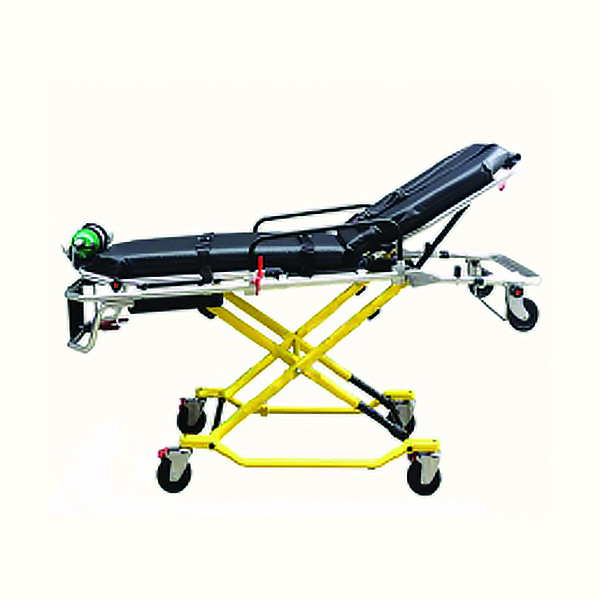

Model: KIM-D14

Specifications

• Dimension – 200*56*100cm
• Folded dimension – 200*56*38 cm
• Backrest – 0-75°
• Legrest – 0-35°
• Loading capacity ≤250KG
• Net weight – 43 kg
• Gross weight – 60 kg
• Material: High strength aluminum alloy
• Bed surface – Waterproof PVC mattress ( 8 cm thickness sponge)
• Foldable legs
• Casters- φ150mm wide surface rubber wheel with independent brakes;
• Upload supporting wheels – 2 pcs
• Packaging dimension – 202*69*44 cm

KEY features and functions

• X-structure mechanical folding legs are light but sturdy;
• Backrest tiltable;
• Leg rest tiltable;
• 2 level positions adjustments; ( Folded & unfolded)
• Reversible guardrail to protect patients during transfer;
• Auto-locked when unfolded to ensure safety;
• Legs auto-folding when lock is released:
• The safety U-hook will hook the ambulance when the landing gear is lowered until the operator release the hook;
• Safety straps available to ensure patients’ safety during transportation;
• Only ONE individual is required to manage the uploading of stretcher onto ambulance
