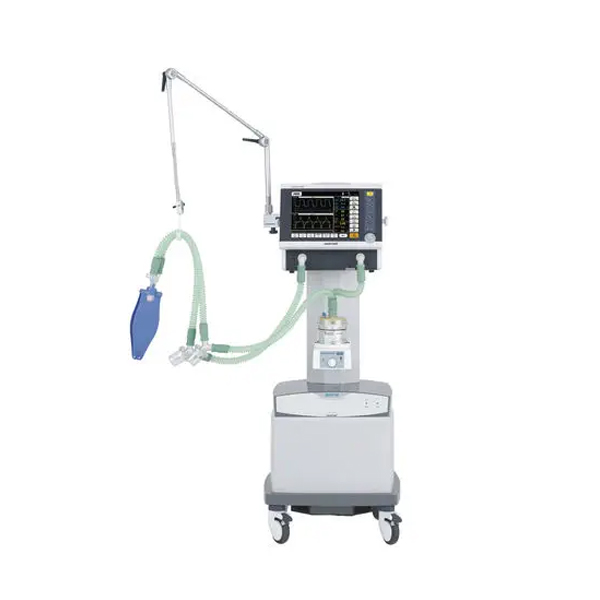

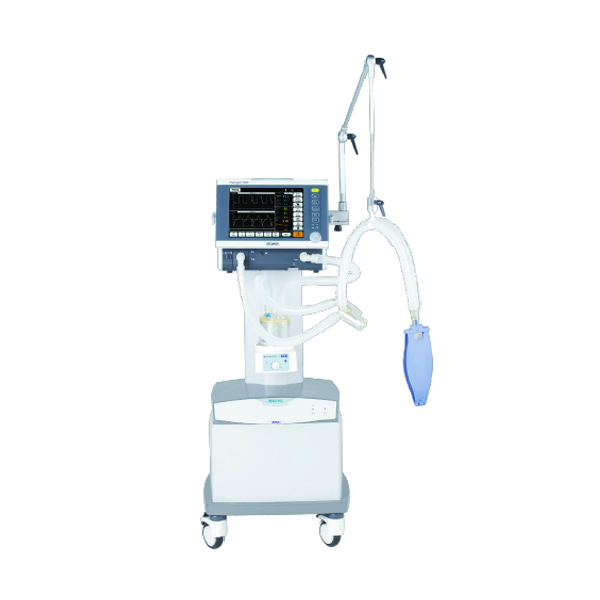

Model: Shangrila590P
| Parameters | |
| Tidal Volume | 20~2500 ml |
| Respiration Rate | 4~100 bpm (VCV, PCV & PRVC mode) 1~40 bpm (SIMV mode) |
| I:E Ratio | 4:1~1:8 |
| PEEP | 0~50 cmH2O |
| Esense | 5%~80% |
| Monitoring | |
| Pressure Value | Ppeak, Pplat, Pmean, PEEP |
| Volume / Flow Value | Vti, Vte, MV, Mvspont |
| Oxygen Monitoring | FiO2 |
| Technical Data | |

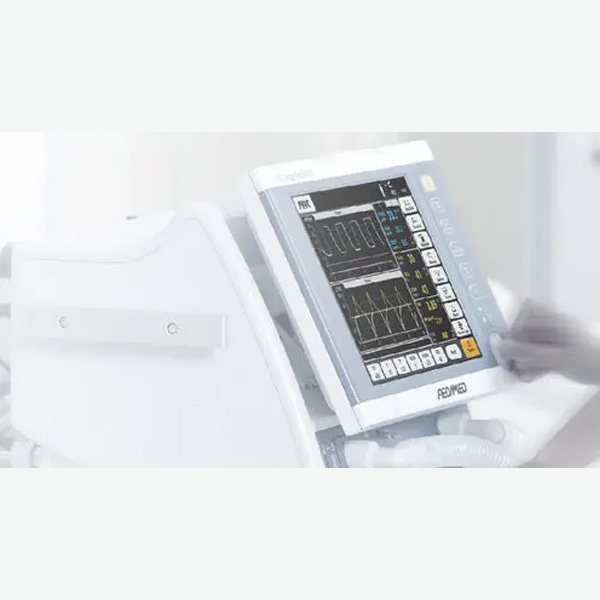

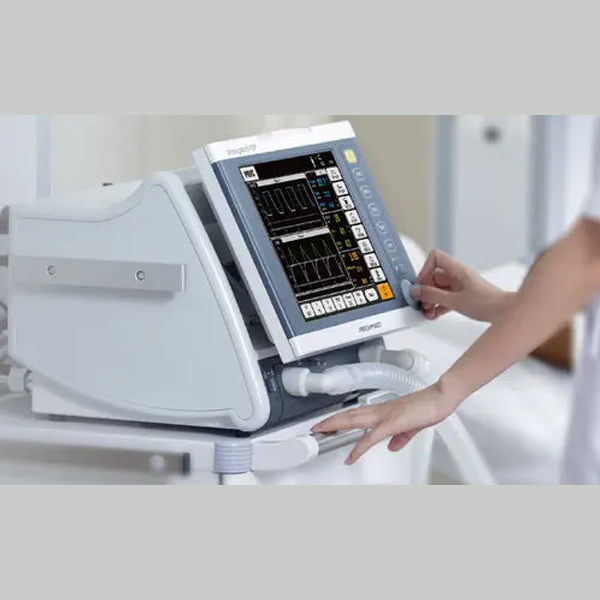

| Screen | 12.1〞color touch screen (detachable) |
| Supply Gas | O2, Air 0.28~0.6 MPa |
| Compliance | ≤4 ml / 100 Pa |
| Weight | 20 kg |
| Dimension (WxDxH) | 410 mm x 410 mm x 328 mm |
| Communication Interface | RS232, VGA, nurse call |
