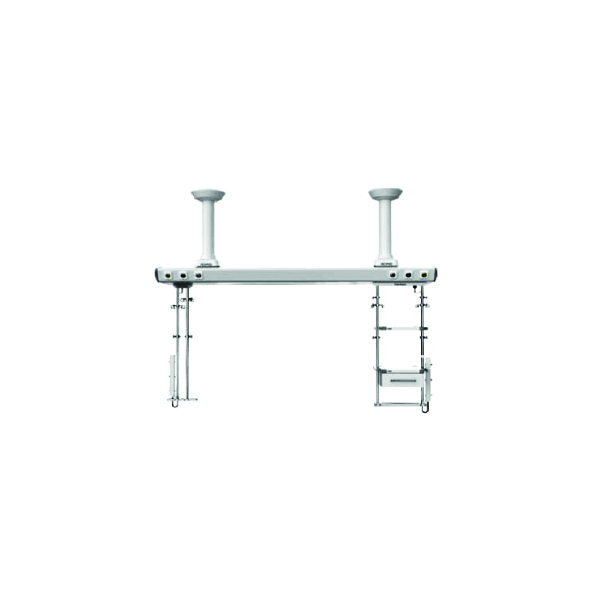

Ceiling Supply System CP6402

Model: CP6402

Technical Specifications

Pendant Technical Specifications
CP8300 series CP8400 series CP8500 series ICU Pendant
Product Name CP8301 CP8302 CP8303 CP8401 CP8402 CP8403 CP8501 CP8341
Drive type Mechanical Mechanical Mechanical Electric Electric Electric Electric Mechanical
Swiveling Range(Angle) 342 342 342 342 342 342 342 342
Vertical height adjustment(mm) 600 600 600
Tray Load Capacity(kg) 80 80 80 80 80 80 80 80
Size of box(mm) 220X220 220X220 220X220 300X300 300X300 300X300 300X300 220X220
All of the pendants have two arms. Parameter configuration can be flexibly customized according to needs



Supply Beam Technical Specifications
CP6400 series CP6500 series
Product Name CP6401 CP6402 CP6501 CP6502
The Length Of The Beam(kg) 3500 3500 3500 3500
Swiveling Range(Angle) 360 360 342 342
Horizontal Distance Adjustment(mm) 550 550 550 550
Tray Load Capacity(kg) 80 80 80 80
Braking System(standard) Mechanical Mechanical Mechanical Mechanical
Size of box(mm) 220X220 220X220 220X220 300X300
  • CP8301: Two Arms Mechanical Surgical Pendant
  • CP8302: Two Arms Mechanical Endoscope Pendant
  • CP8303: Two Arms Mechanical Anesthesia Pendant
  • CP8401: Swing Two Arms Electric Surgical Pendant
  • CP8402: Swing Two Arms Electric Endoscope Pendant
  • CP8402: Swing Two Arms Electric Endoscope Pendant with Arm Monitoring System
  • CP8403: Swing Two Arms Electric Anesthesia Pendant
  • CP8501: Two Arms Electric Anesthesia Pendant
  • CP8341: Two Arms Mechanical Dry And Wet Separation Pendant (ICU)
  • CP6401: Standard Supply Beam (Dry area and wet area are separeted.)
  • CP6402: Standard Supply Beam (Dry area and wet area are separeted.)
  • CP6501: High-grade Supply Beam (Dry area and wet area are separeted.)
  • CP6502: High-grade Supply Beam (Dry area and wet area are separeted.)
