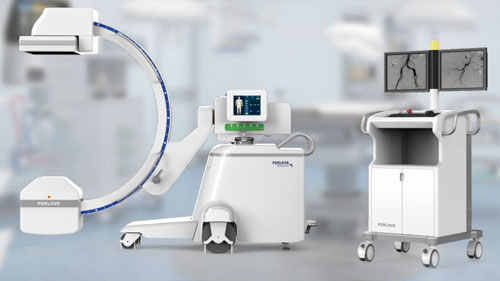

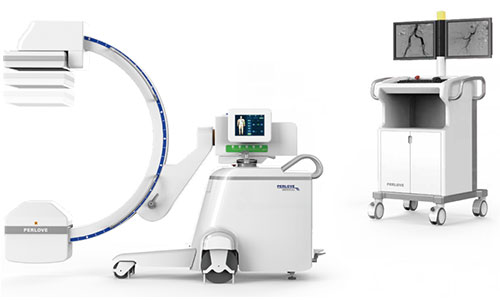

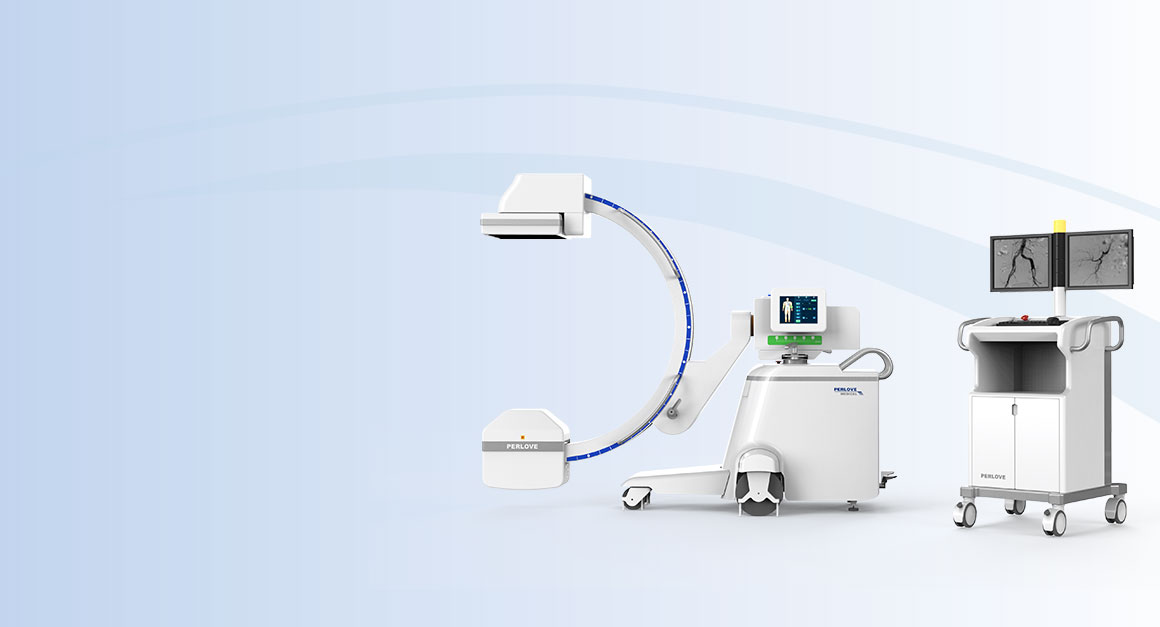

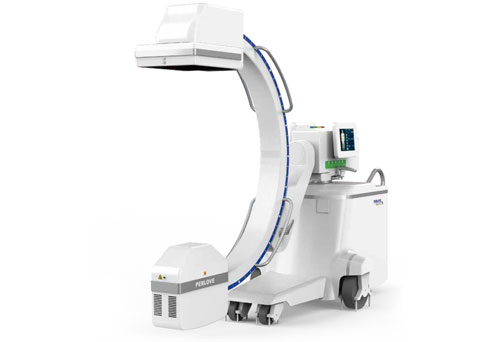

Model: PLX7100A

Technical specification

• High frequency high voltage generator
• Power output:25kW
• Inverter Frequency:60kHz
• Continuous fluoroscopy(Manual, Auto)
• Tube voltage:40kV～125kV,continuous adjustable
• Tube current:0.3mA～5mA,continuous adjustable
• Enhance fluoroscopy （Manual, Auto）
• Tube voltage:40kV～125kV,continuous adjustable
• Tube Current:0.3mA～10mA,continuous adjustable
• Pulse fluoroscopy
• Tube voltage:40kV～125kV,continuous adjustable
• Tube current:0.3mA～100mA,continuous adjustable
• Pulse frequency:0.1～12.5 frame per second, continuous adjustable
• Radiography tube voltage:40kV～125kV
• Radiography tube current:70mA～200mA
• Radiography mAs:0.1mAs～320mAs

X-ray tube assembly

• Dual focuses X-ray tube: 0.6 / 1.3, rotating anode heat capacity:80kJ
• Heat capacity:1000KJ

Digital imaging system

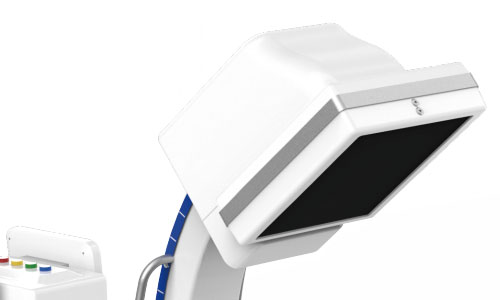

• Flat panel detector
• Model:THALES Pixium Surgical 2630
• Effective area size is:28.7cm×26.5cm
• Maximum pixel size:1560×1440
• Pixel size:0.184mm
• 16-bit analog-to-digital converter

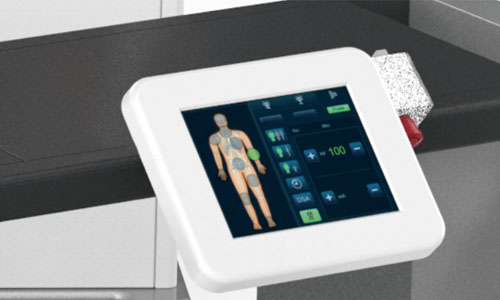

• Display: 21-inch 2M gray-scale medical liquid crystal display
