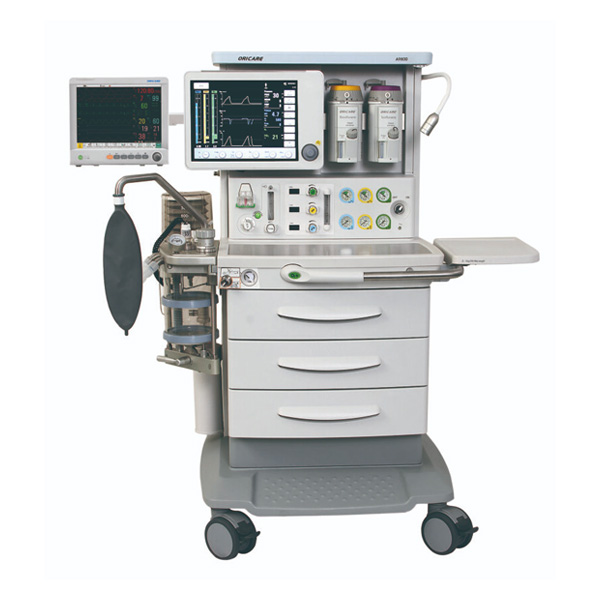

Model: A9800

Ventilation Modes

• Volume Controlled Ventilation (VCV)
• Pressure Controlled Ventilation (PVC)
• Synchronized Intermittent Mandatory Ventilation w / Pressure
• Support (SIMV + PS) with Volume or Pressure-type mandatory breaths
• Pressure Support (PS) with Apnea Backup
• Pressure Controlled Ventilation with Volume Guarantee (PCV-VG)
• Manual Ventilation

Parameters and Ranges

• Pressure target: 5 – 70 cmH2O
• Pressure support (delta P): 3 – 50 cmH2O
• Tidal Volume: 20 – 1500 mL
• Breathing Freq.: 2 – 100 bpm, 2 – 60 bpm in PS, 2 – 100 bpm in SIMV-VC and SIMV-PC, 4 – 100 bpm in other modes
• TINSP: 0.2 – 5.0 s
• PEEP: OFF, 3 – 30 cmH2O
• FreqMIN: 2 – 60 bpm
• Tpause: OFF, 5% – 60%
• Trigger: 1 – 15 L/min
• I:E Ratio: 4:1 – 1:8
• TSLOPE: 0 – 2 s
• Vaporizers: Sevoflurane, Desflurane, Isoflurane, Halothane, Enflurane
